SurgSync: Time-Synchronized Multi-Modal Data Collection Framework and Dataset for Surgical Robotics

1Worcester Polytechnic Institute    2Johns Hopkins University    3University of British Columbia    4Politecnico di Milano
Paper (Coming Soon) arXiv Dataset
Code-Toolbox Code-Framework (Coming Soon)

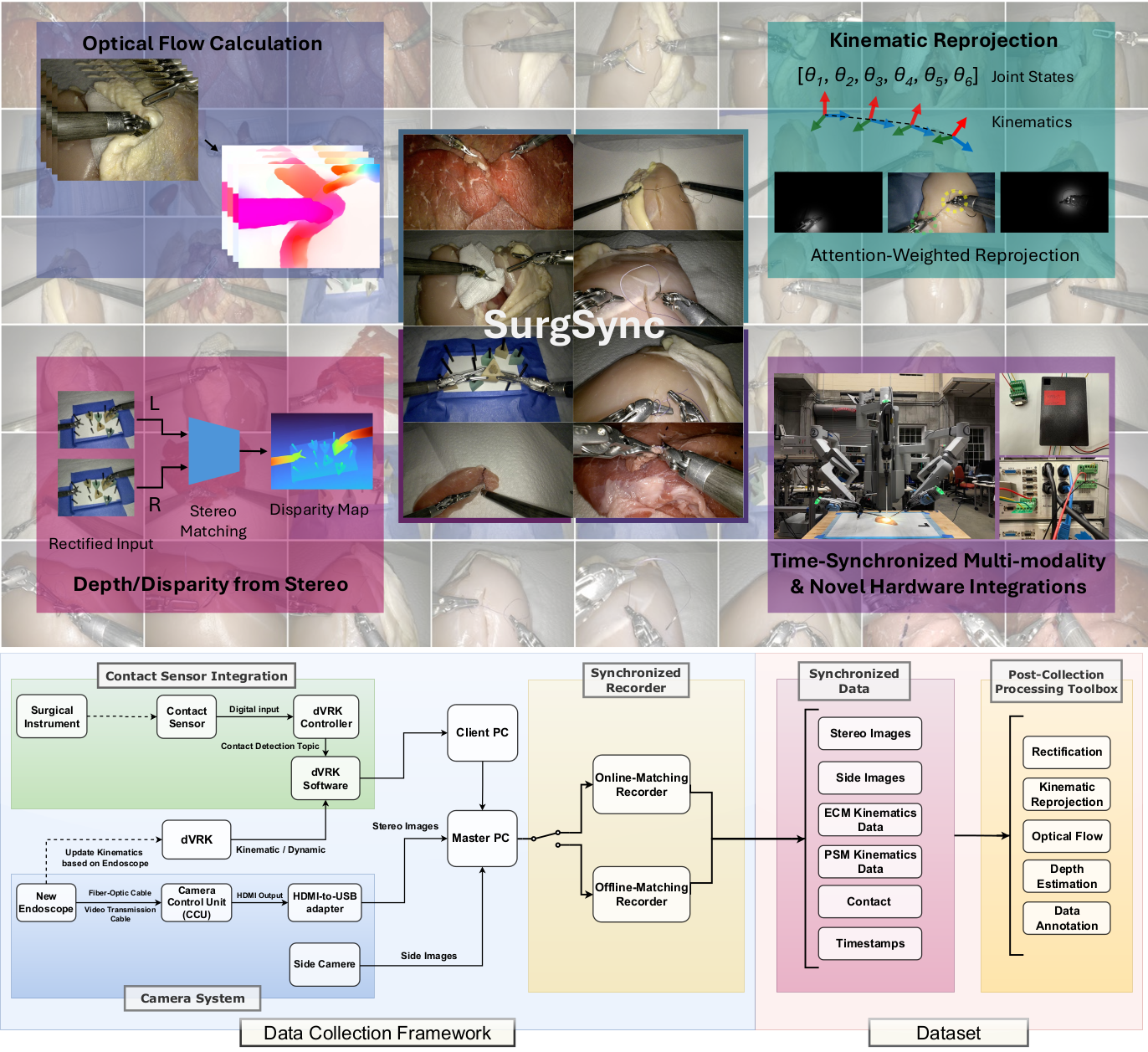

SurgSync overview diagram: framework, dataset, and post-processing toolbox

SurgSync is a time-synchronized multi-modal data collection framework for surgical robotics, featuring dual-mode recorders, a modern stereo endoscope, capacitive contact sensing, and a post-collection processing toolbox — validated on 214 user-study instances across four surgical tasks.

Authors

Haoying Zhou

Haoying Zhou

1,2 WPI / JHU

Chang Liu

Chang Liu

2 JHU

Yimeng Wu

Yimeng Wu

2 JHU

Junlin Wu

Junlin Wu

2 JHU

Zijian Wu

Zijian Wu

3 UBC

Paul Lee

Yu Chung Lee

3 UBC

Sara Martuscelli

Sara Martuscelli

4 Polimi

Septimiu E. Salcudean

Septimiu E. Salcudean

3 UBC

Gregory S. Fischer

Gregory S. Fischer

1 WPI

Peter Kazanzides

Peter Kazanzides

2 JHU

1 Worcester Polytechnic Institute    2 Johns Hopkins University    3 University of British Columbia    4 Politecnico di Milano

Correspondence: hzhou6@wpi.edu   ·   pkaz@jhu.edu

Abstract

Most existing robotic surgery systems adopt a human-in-the-loop paradigm, often with the surgeon directly teleoperating the robotic system. Adding intelligence to these robots would enable higher-level control, such as supervised autonomy or even full autonomy. However, artificial intelligence (AI) requires large amounts of training data, which is currently lacking.

This work proposes SurgSync, a multi-modal data collection framework with offline and online synchronization to support both training and real-time inference, respectively. The framework is implemented on a da Vinci Research Kit (dVRK) and introduces (1) dual-mode (online/offline-matching) synchronized recorders, (2) a modern stereo endoscope to achieve image quality on par with clinical systems, and (3) additional sensors such as a side-view camera and a novel capacitive contact sensor to provide ground truth contact data.

The framework also incorporates a post-processing toolbox for tasks such as depth estimation, optical flow, and a practical kinematic reprojection method using Gaussian heatmap. User studies with participants of varying skill level are performed with ex-vivo tissue to provide clinically realistic data, and a network for surgical skill assessment is employed to demonstrate utilization of the collected data. Through the user study experiments, we obtained a dataset of 214 validated instances across multiple canonical training tasks. All software and data will be made available to the research community.

Overview

ICRA 2026

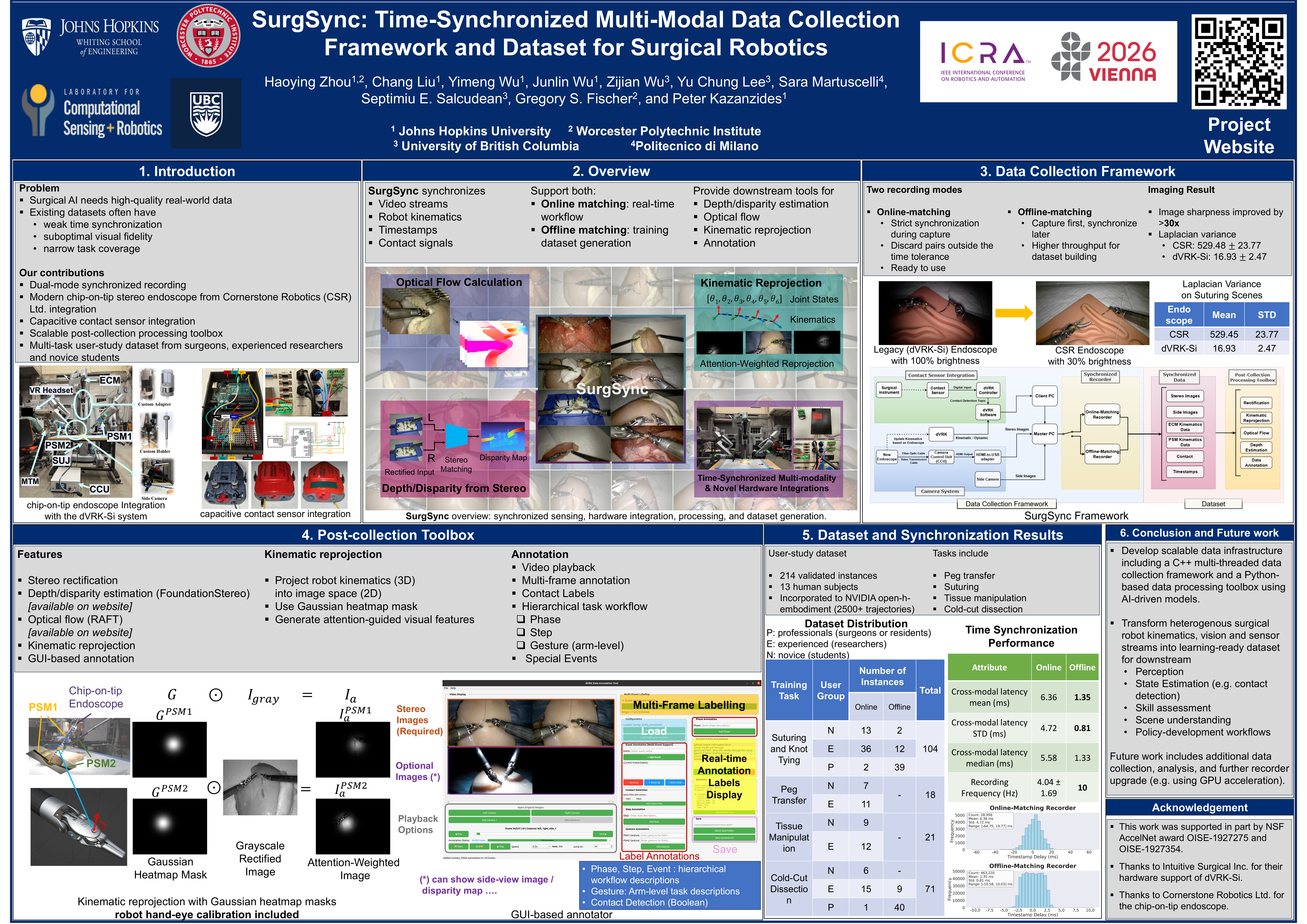

SurgSync ICRA 2026 overview poster

Open full poster (PDF)

Dataset

User Study & Data Collection

We conduct a user study with 13 human subjects (3 female, 10 male) spanning three skill levels — Novice (N), Experienced (E), and Professional (P). Tasks are performed on phantoms and ex-vivo tissues for clinical realism.

The resulting dataset comprises 214 validated instances across four canonical surgical training tasks. Each instance provides time-aligned:

  • Stereo endoscope images (1080p, 60 Hz)
  • Side-view camera images (1080p, 30 Hz)
  • ECM & PSM kinematic data (6D Cartesian + gripper)
  • Tool-tissue contact ground truth (binary)
  • Timestamps across all modalities

All modalities are frame-aligned by our synchronized recorders, enabling direct multi-modal model training without additional interpolation.

Dataset Distribution

Training Task Novice (N) Experienced (E) Professional (P) Total
Online Offline Online Offline Online Offline
Suturing & Knot Tying 13 2 36 12 2 39 104
Peg Transfer 7 — 11 — — — 18
Tissue Manipulation 9 — 12 — — — 21
Dissection 6 — 15 9 1 40 71
Total 35 2 74 21 3 79 214
■ Online ■ Offline — = not collected

Note on recording frequency. The dataset is recorded at 10 Hz (offline-matching recorder), or the effective rate of the online-matching recorder (4.04 ± 1.69 Hz). This is a deliberate trade-off between time alignment and record frequency: pushing the frequency higher leaves less time per cycle to cross-match modalities, which degrades temporal alignment, whereas a lower frequency yields tighter alignment but fewer samples. Our operating point balances both — keeping sub-millisecond-to-few-millisecond latency while sustaining a usable sampling rate for multi-modal learning.

Post-Collection Processing Toolbox

Beyond data acquisition, we provide a configurable and extensible post-collection processing toolbox that standardizes calibration and data processing — covering stereo rectification, kinematic reprojection, depth estimation, optical flow, and data annotation.

Kinematic Reprojection 4× speed

Projects 3D PSM tool-yaw link positions into the endoscope image plane using hand-eye calibration and Gaussian heatmap rendering, providing per-frame kinematic ground truth for both PSM1 and PSM2.

Original Endoscope Video

Original Endoscope Video

Kinematic Reprojection

PSM1 Kinematic Reprojection
PSM2 Kinematic Reprojection

Depth Estimation 4× speed

Dense stereo depth estimation using FoundationStereo on the rectified stereo endoscope stream, producing per-pixel disparity maps synchronized with all other modalities.

Original Endoscope Video

Original Endoscope Video

Disparity Map

Disparity Map Video

Optical Flow 4× speed

Dense optical flow estimation using RAFT on sequential endoscope frames, capturing instrument and tissue motion patterns for training motion-aware models.

Original Endoscope Video

Original Endoscope Video

Optical Flow

Optical Flow Video

Annotation GUI 4× speed

A custom PyQt-based annotation tool for labeling tool-tissue contact detection and task descriptions during frame-by-frame playback of synchronized recordings.

Annotation Interface

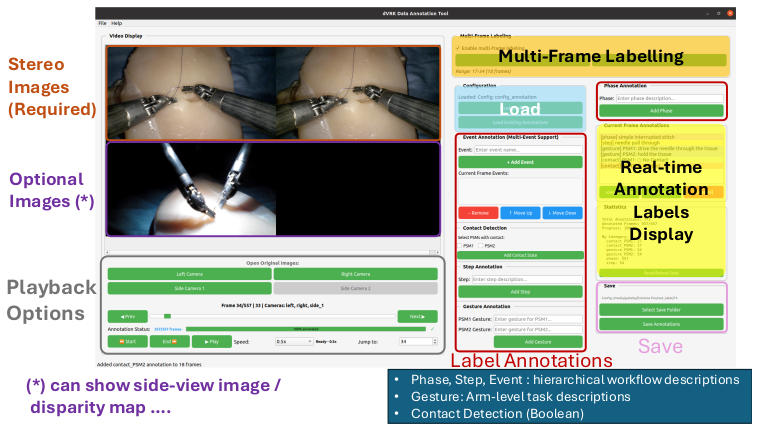

Data annotation GUI built with PyQt for contact detection and task description labeling
Annotation GUI

Demo

Quick Demo on how to use the Annotation GUI

Key Contributions

Dual-Mode Synchronized Recorder

Two synchronized recorders — online-matching for real-time use (6.36 ± 4.72 ms mean latency) and offline-matching for high-fidelity dataset construction (1.35 ± 0.81 ms mean latency). Time synchronization is treated as a first-class design constraint across all modalities.

Upgraded Imaging Stack

Integration of a modern chip-on-tip stereo endoscope with the dVRK-Si via a custom 3D-printed holder. Achieves over 30× higher Laplacian variance (529.48 ± 23.77 vs 16.93 ± 2.47) compared to the default dVRK-Si scope — delivering significantly sharper frames for downstream perception tasks.

Tool-Tissue Contact Ground-Truth Sensing

A capacitive contact sensor (Arduino UNO Rev3) seamlessly integrated via the dVRK digital input. Supports non-polar, monopolar, and bipolar surgical instruments. Provides reliable binary contact ground truth on human and ex-vivo animal tissues.

Post-Collection Processing Toolbox

A configurable and extensible toolbox covering stereo rectification, kinematic reprojection via Gaussian heatmap (PSM tool-yaw → image), depth estimation (FoundationStereo), optical flow (RAFT), and a custom PyQt data annotation GUI for contact and event/phase labeling.

System Setup

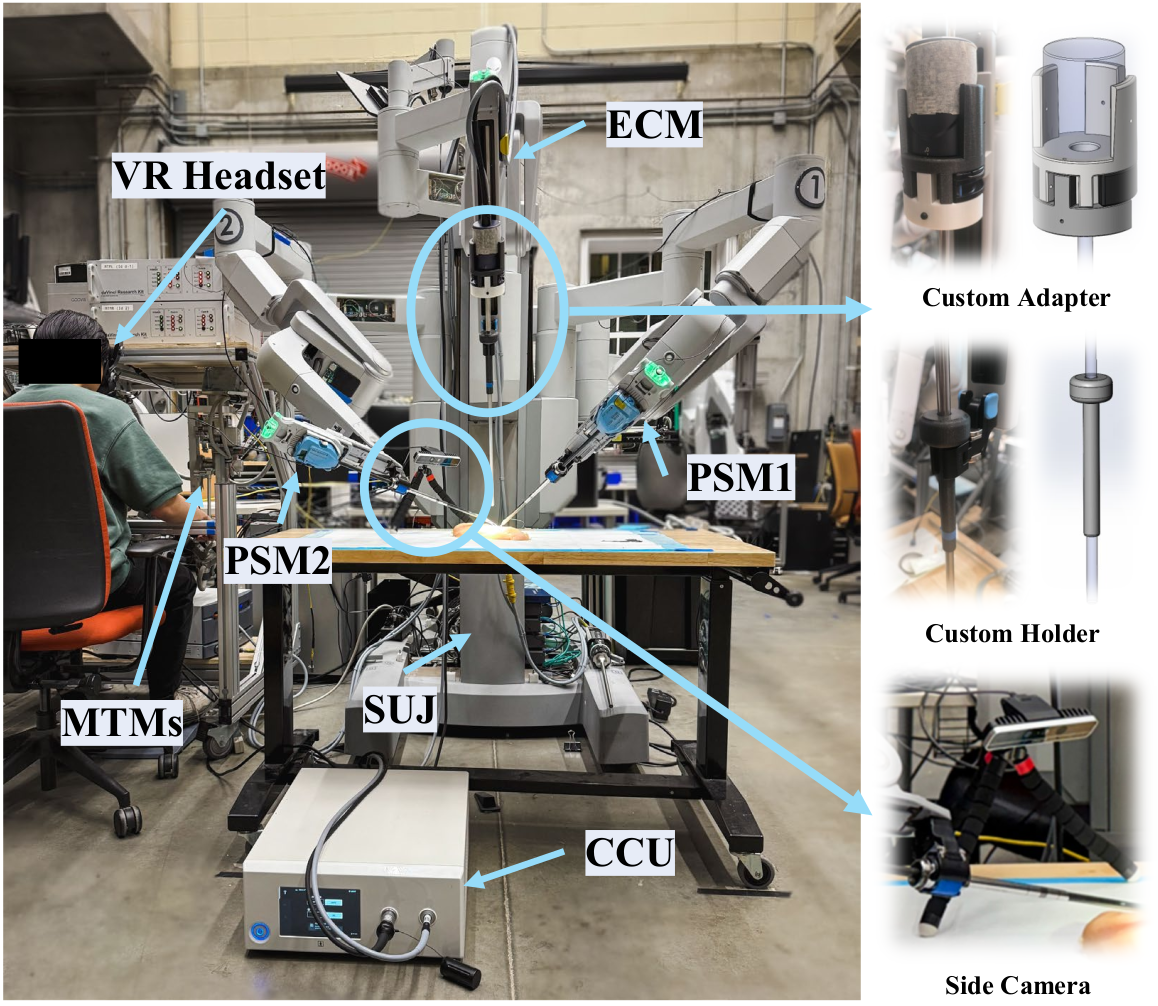

Overall experimental setup: dVRK-Si with modern endoscope, side camera, and contact sensor

Hardware Integration

The primary system is built on the dVRK-Si platform (Patient Side Manipulator, Endoscope Camera Manipulator, Master Tool Manipulators). A secondary cross-platform setup on dVRK Classic validates generalizability.

  • Chip-on-tip stereo endoscope — mounted on the ECM via a custom 3D-printed compact holder with coaxial alignment and quick attachment
  • Side-view camera — Intel® RealSense™ RGBD for additional viewpoint
  • Capacitive contact sensor — Arduino UNO Rev3 connected to the dVRK digital input for tool-tissue contact detection
  • Master + Client PC architecture — Master PC handles image pipeline; Client PC runs dVRK software

Cameras capture at 1080p. The stereo endoscope runs at 60 Hz; the side camera at 30 Hz. The dVRK kinematic/control loop runs at 1 kHz.

Imaging Quality Comparison

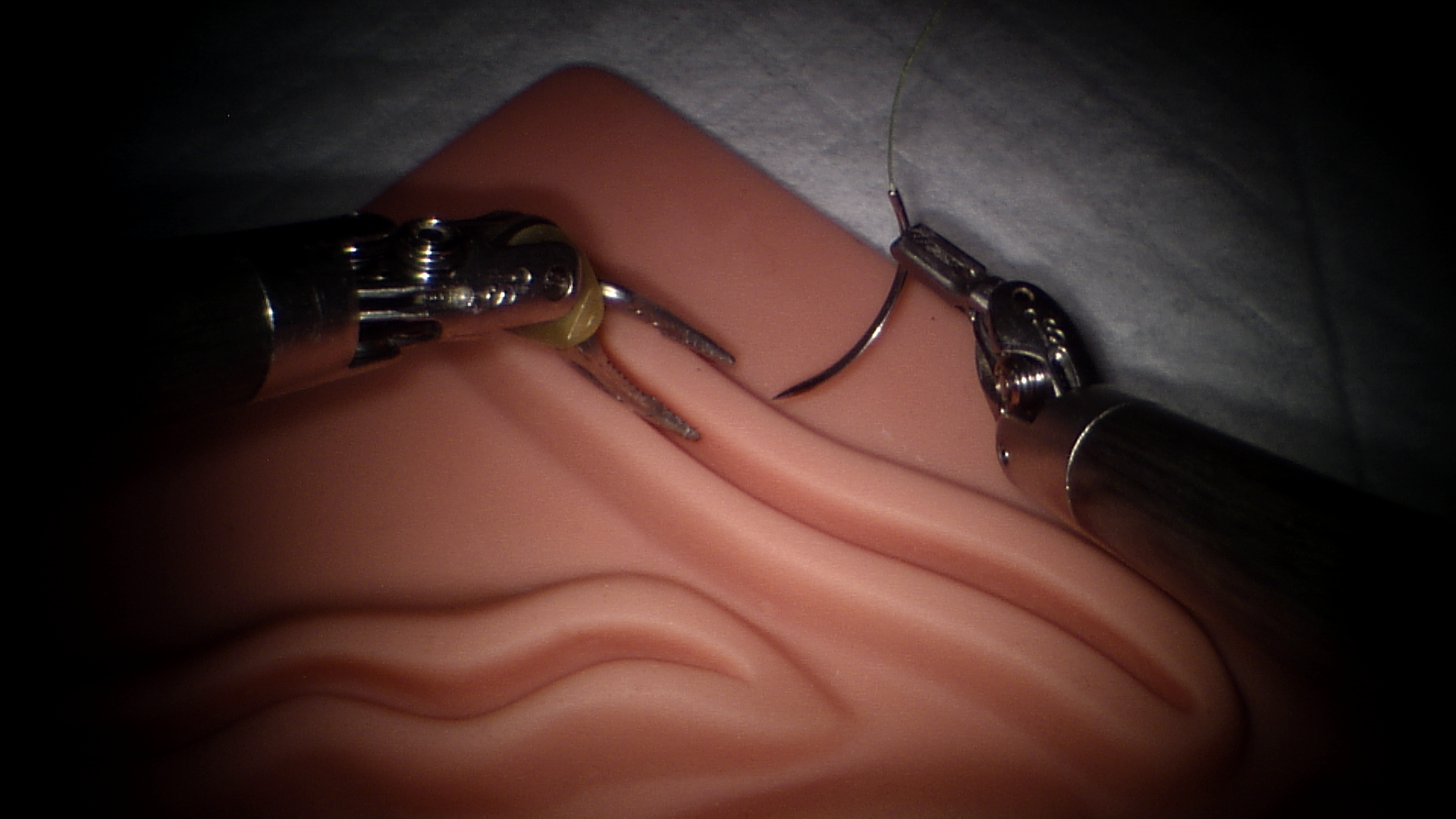

dVRK-Si default endoscope sample frame

dVRK-Si Endoscope
Laplacian Variance: 16.93 ± 2.47

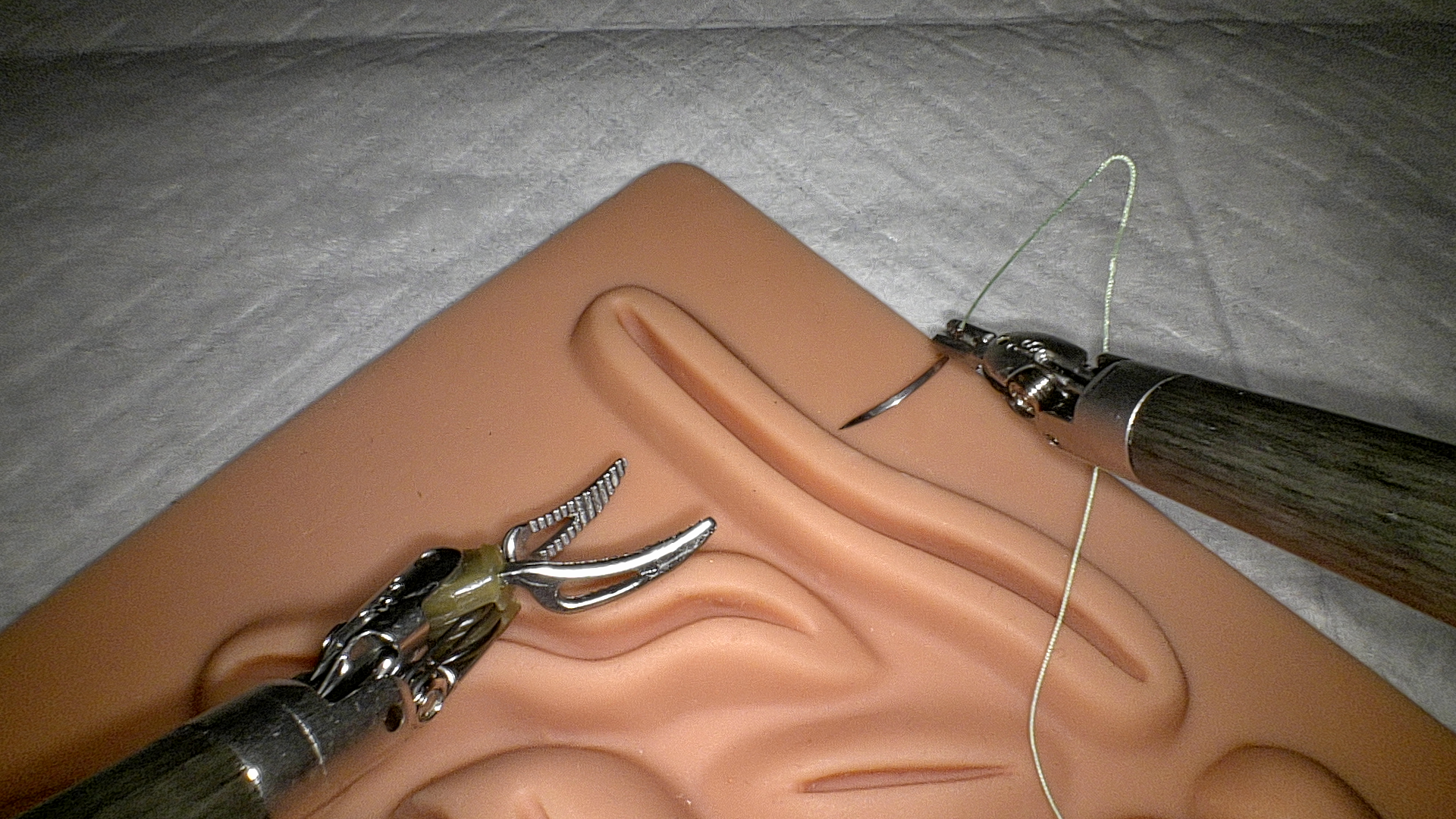

Custom chip-on-tip endoscope sample frame

Our Modern Chip-on-Tip Endoscope
Laplacian Variance: 529.48 ± 23.77

Results

Synchronization Performance

Attribute Online-Matching Offline-Matching
Time latency mean ± std (ms) 6.36 ± 4.72 1.35 ± 0.81
Time latency median (ms) 5.58 1.33
Recording frequency (Hz) 4.04 ± 1.69 10
Ready to use immediately ✅ Yes ⚙️ Post-collection time-matching required

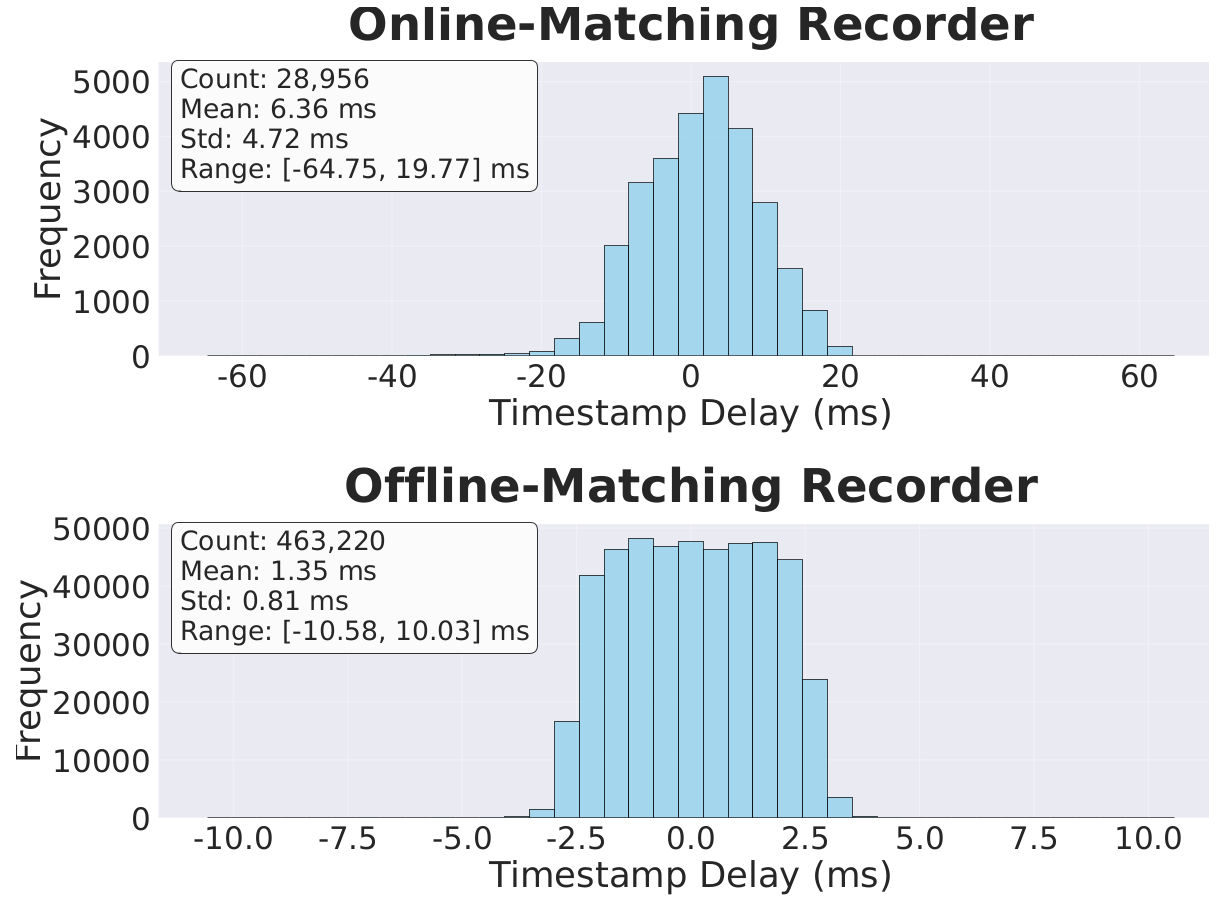

Raw time latency distribution histograms for both recorders

Raw timestamp-delay distribution across all ROS topics for both recorders.

Dataset Validation via Skill Assessment

To demonstrate the utility of the SurgSync dataset, we validate it through a surgical skill assessment task. We train a unified multi-path assessment model that jointly ingests kinematic (14D Cartesian + gripper state), visual (2048D ResNet-101 features), and gesture (14D one-hot encoded) modalities — all modalities are per-frame aligned by our synchronized recorder, eliminating the need for additional temporal interpolation. More detailed results are demonstrated in the manuscript.
